Here are pics of the rudder pedals I designed to use with my personal Series One cockpit:
![rudder1 Front view](http://www.simpits.org/geneb/wp-content/uploads/2009/05/rudder1-300x201.jpg)
Front view
![rudder4 Rear view](http://www.simpits.org/geneb/wp-content/uploads/2009/05/rudder4-300x201.jpg)
Rear view
![rudder5 Toe brake detail](http://www.simpits.org/geneb/wp-content/uploads/2009/05/rudder5-300x201.jpg)
Toe brake detail
![rudder3 Centering system](http://www.simpits.org/geneb/wp-content/uploads/2009/05/rudder3-300x201.jpg)
Centering system
They’re not “sexy”, but they certainly get the job done. 🙂
Here are pics of the rudder pedals I designed to use with my personal Series One cockpit:
Front view
Rear view
Toe brake detail
Centering system
They’re not “sexy”, but they certainly get the job done. 🙂

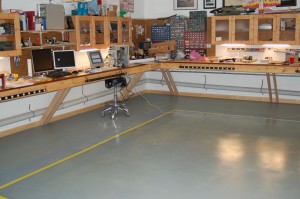

I’ve always intended on painting the shop floor. It makes it look nicer and it’s easier to clean.
The yellow strip doesn’t really signify anything. It was just a clever way of separating the two different floor paint products I used.
The paint closest to the wall is a single part floor paint, the other is a two part epoxy floor paint. I’d had them kicking around for a couple of years before I got around to using them up last week. The whole floor wasn’t painted either – just the corner area where the workbenches are. The paint is extremely expensive, especially for the two part epoxy type.
