[simpits-tech] CanBus F-15C project relaunch!

[David C. Allen]

Gene
I have a test of concept working. But I’m not a software savvy guy, I could do a better job selling used cars then creating Arduino sketches.

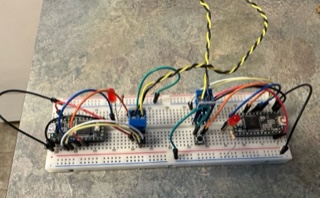

Two Teensy’s communicating over CANBus.


Some Teensy and Arduino products have the CANBus communications protocol.

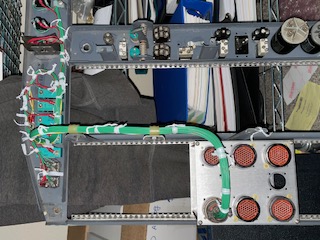

My thought was/is to send switch status and Korry indicator control via CANBus to the game.  Unfortunately I did not give the proper amount of thought to the idea. It would have been better to use one teensy per module and interconnect the canbus between modules. That way the only additional wires needed would be lighting and power. But that ship has sailed and I am not going to rewire every overhead module.

So it will be running wires to a location and then CANBus to the game


David
Good friends are the rare jewels of life, difficult to find and impossible to replace!!


> On Jan 30, 2023, at 10:18 AM, geneb <geneb at deltasoft.com> wrote:
> On Mon, 30 Jan 2023, David C. Allen wrote:
>
>> Gene
>> Have you given any thought to using CANBus instead of long point to point wiring?
>
> I haven't really.  There's going to be a lot of wiring harness work out of necessity, but I haven't done much work recently on what happens after the cannon plugs.
>
> In thinking about it though, it sure gives me some interesting ideas.
>
> I could have controllers for blocks of things and that would make the interconnects a lot easier.  That being said, I could also do it using 1Gb/sec Ethernet and SBCs like the Raspberry Pi.  That would save me from having to write low-level protocol stacks if nothing else.  I can write tcp/ip stuff practically in my sleep. ;)
>
> Are you leveraging CANBus in your 737?
>
> g.
>
>
>
> --
> Proud owner of F-15C 80-0007
> http://www.f15sim.com - The only one of its kind.
> http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
> Some people collect things for a hobby.  Geeks collect hobbies.
>
> ScarletDME - The red hot Data Management Environment
> A Multi-Value database for the masses, not the classes.
> http://scarlet.deltasoft.com - Get it _today_!
