On Sun, 18 Sep 2011, Justin Messenger wrote:

> Gene,
> id be happy to see it.
>
> For a status update, I confirmed the outputs card is toast, but the computer was being effected by a seperate problem. In the cockpit I have a keyboard I can pull out for program the sim. When I exited teh sim the seatbelt fell on the keyboard and was pressing keys, hence the computer acting crazy at the control station.
>
> So the real damage was limit to the output card which thankfully is not that expensive. I changed some things so that less amp will be pulled on the replacement card that will be ordered tonight in anticipation of more g suit  flying :)
>

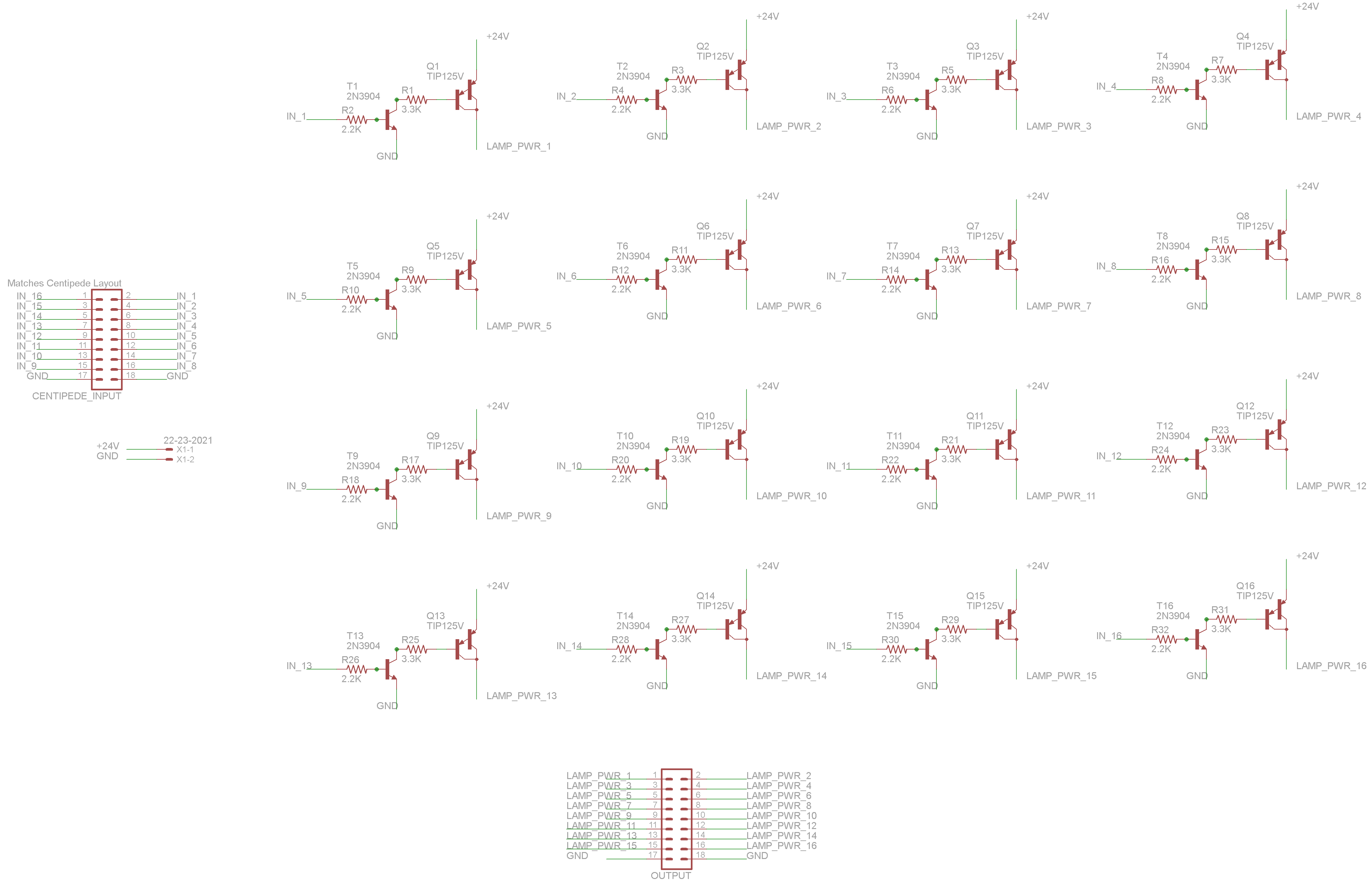

Here's the schematic:

http://www.geneb.org/driver_board/new_tip125_board.png

...and the gerber files to make the board:
http://www.geneb.org/driver_Board/new_tip125_board.zip

g.

--
