[simpits-tech] Dual Differential Toe Brakes.. How? (I'm stuck!)

[Matt Bailey]

I've wondered about the possibility of using pressure sensors for toe
brakes before. In little general aviation planes (and perhaps bigger
stuff) you really don't have any feedback from the brakes (aside from
the built-in springs) until you get almost to the extent of the pedal's
travel. It's comparable to the response you get from bicycle
brakes.....a lot of "dead zone", then the brakes sorta "hit a wall" and
braking is controlled mainly by pressure, with very little actual
movement. It seems like pressure sensors would be ideal.

Actually, I used a pretty decent pair of pedals at school (I think they
are PFC) and they seem to be using springs (or perhaps bungees) and
potentiometers that work through the entire (or at least most of the)
range of the pedal's travel....it feels totally weird and unrealistic.

	-Matt Bailey

Bubba wrote:
>
> Gene Buckle wrote:
> > Ok, here you go...
> >

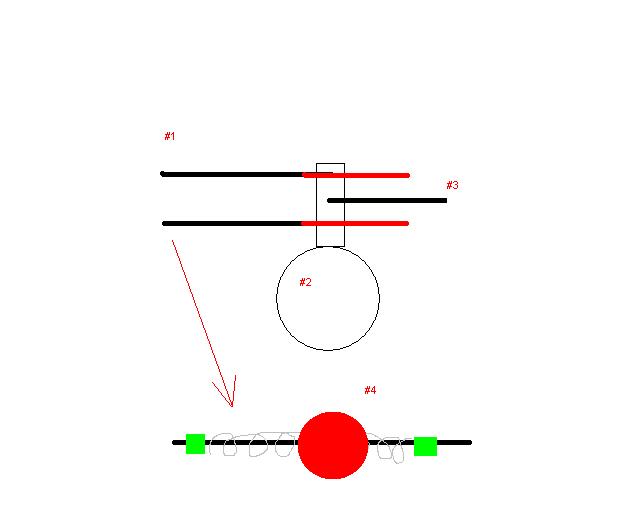

> > http://www.simpits.org/fileproc/files/lame_drawing.JPG
>
> Ok, that's entirely too complicated ;)
>
> Anyone want a real hydraulic brake setup? Piece of cake to make it work.
> Attach the master cylinders to the pedals, run the hoses to a convenient
> spot for the slave cylinders, wire pot(s) into Epic or whatever. I've been
> making small pneumatic and hydraulic cylinders lately and haven't really had
> anything useful to do with them yet. Sounds like a perfect spot :)
> --
> Steve
