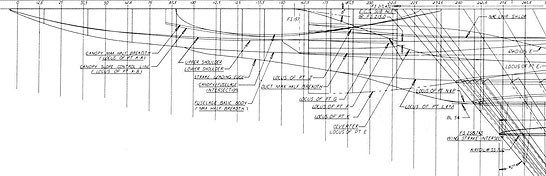

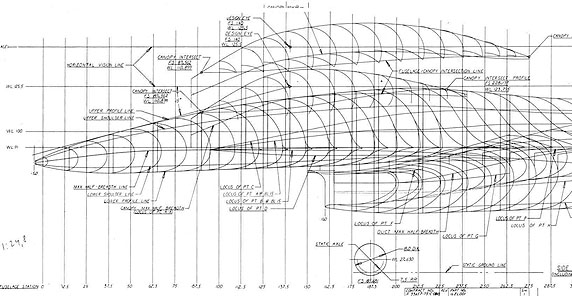

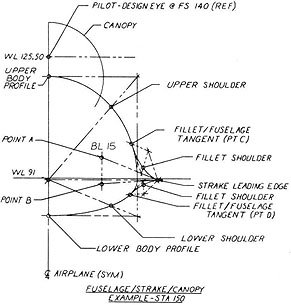

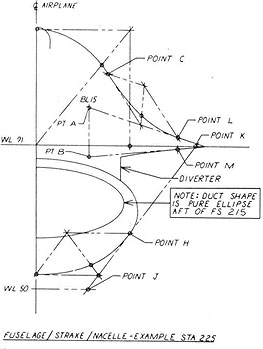

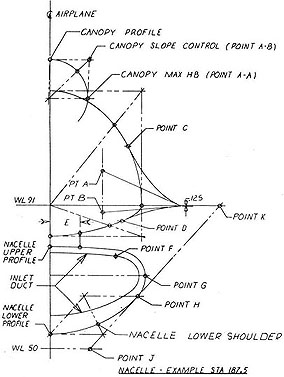

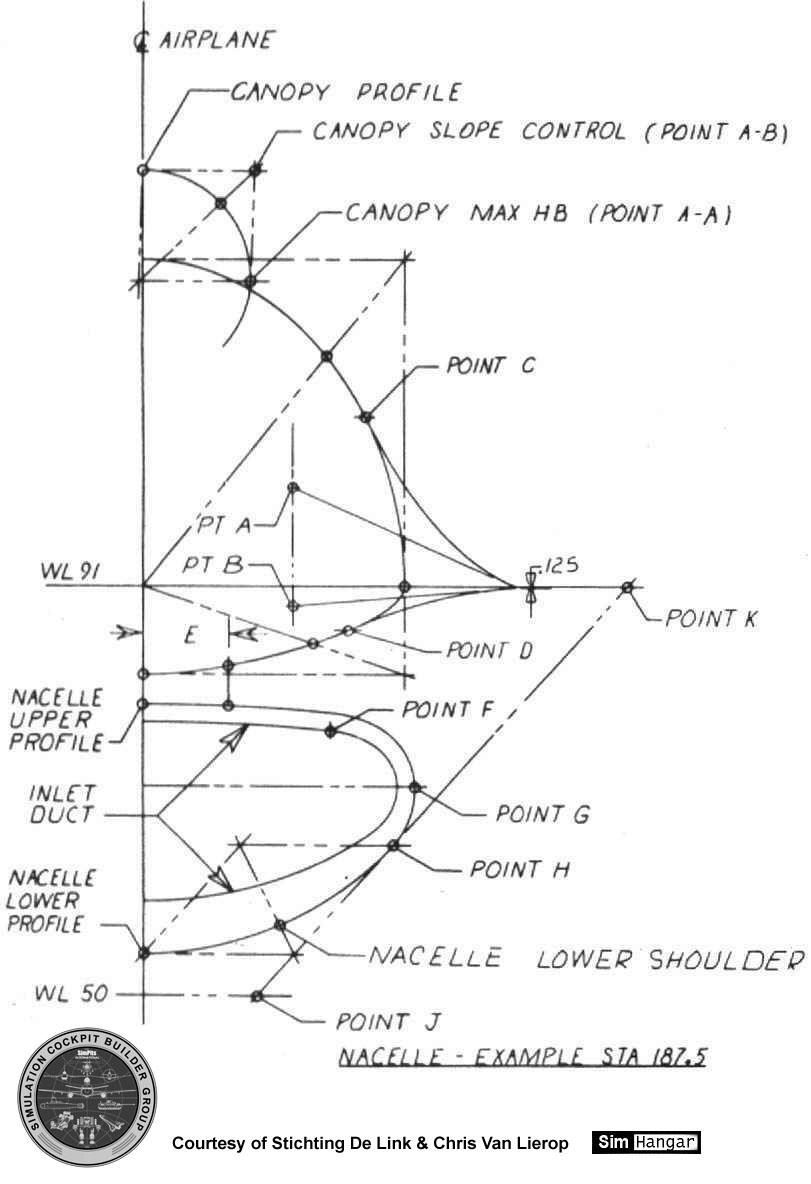

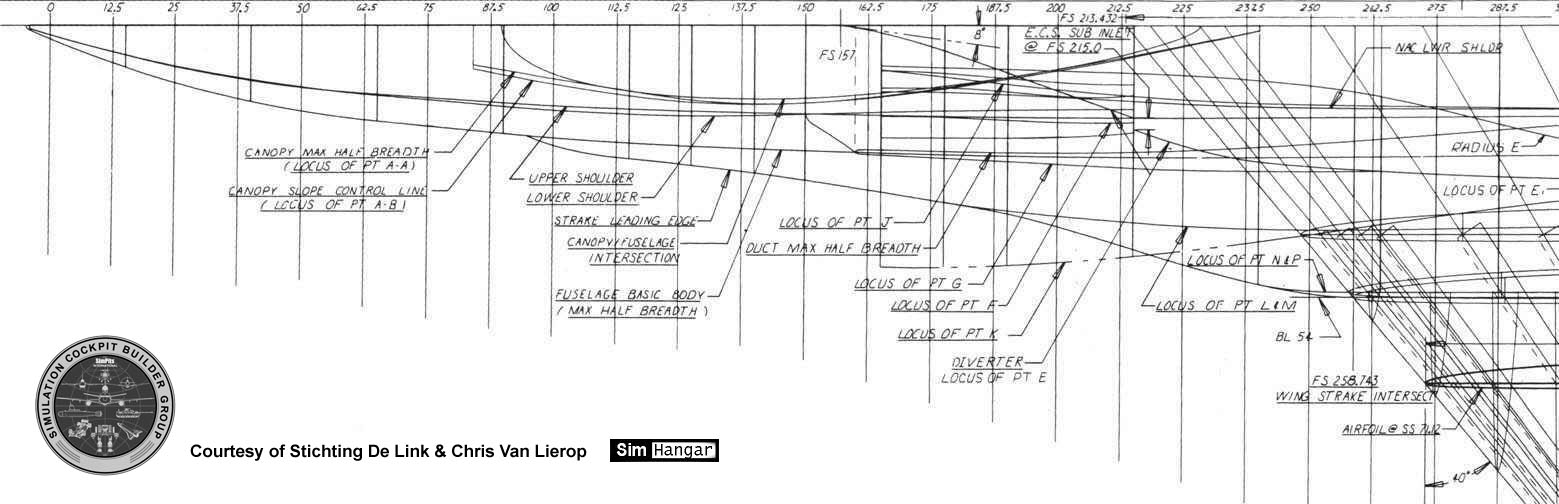

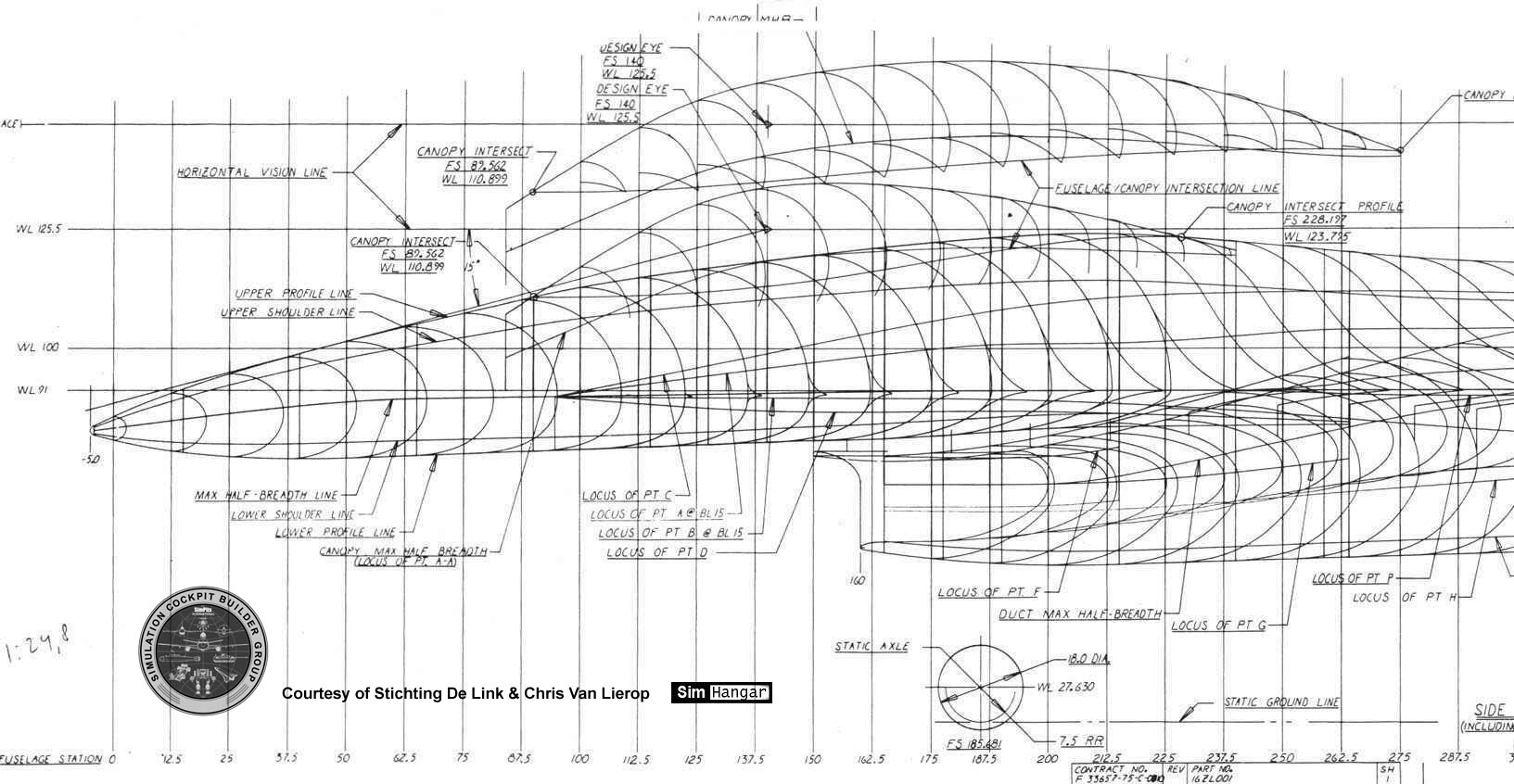

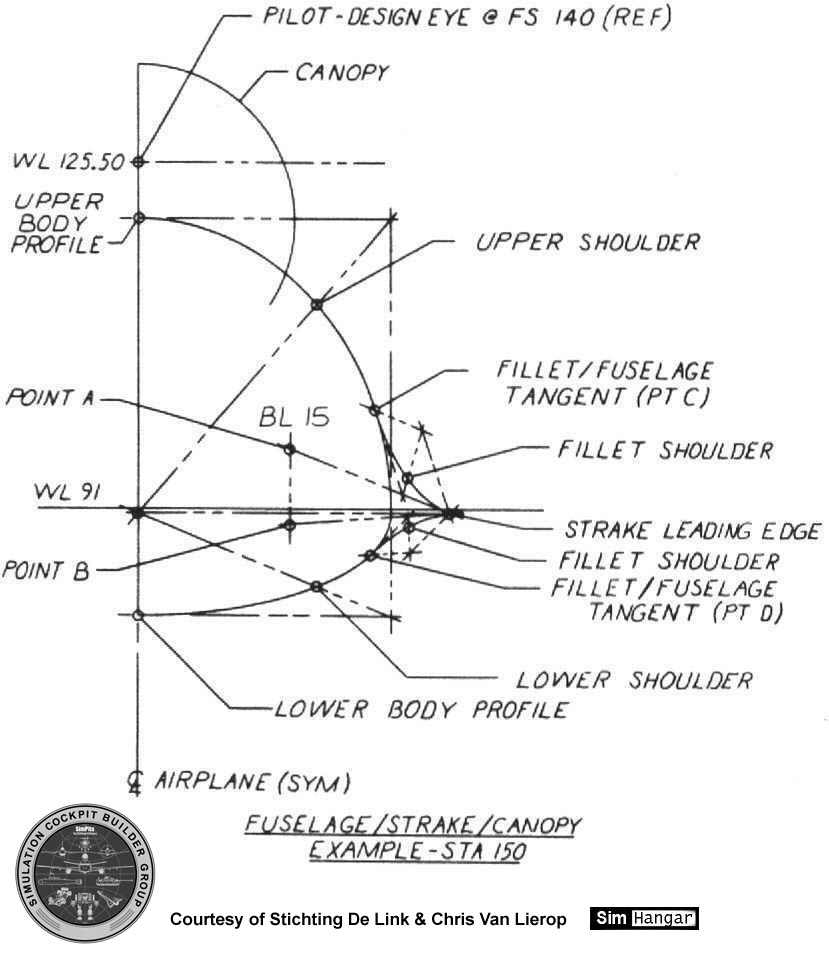

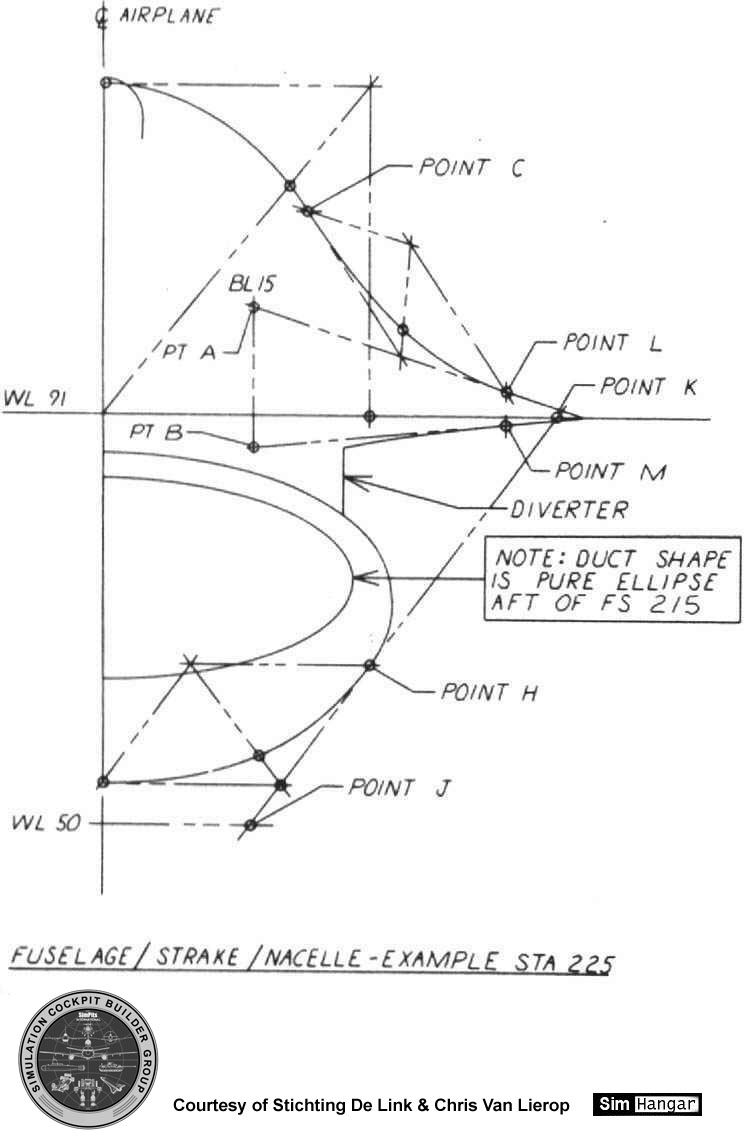

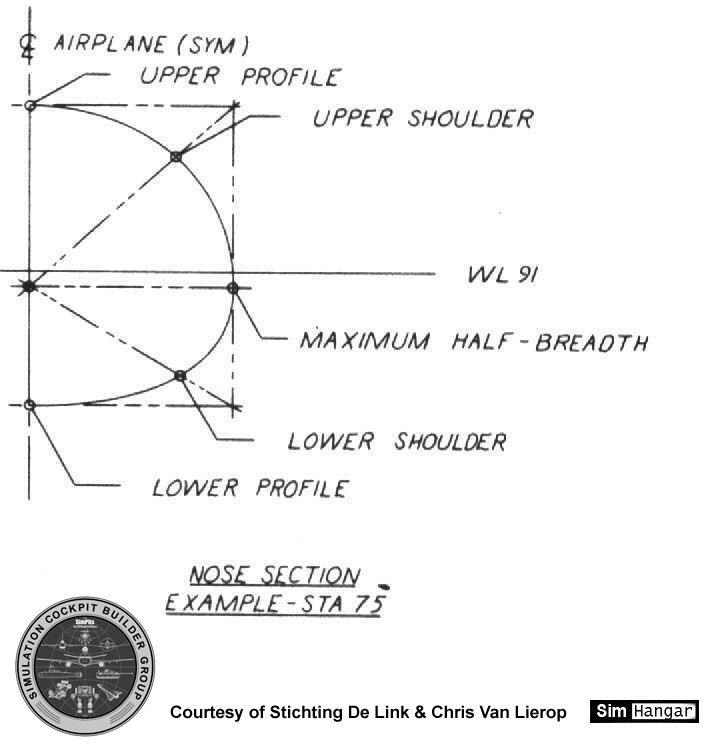

These are some original drawings from General Dynamics. They were kindly
donated to me by
someone from Stichting
De Link.
Although the drawings I received said they were scale
1:10, I found out they were scaled down when copied. Through some references
I have come to the calculation that these drawings are now around 1:24,8.
Anyone that can give me a more exact estimate is VERY welcome to let me
know!!! ;-)
Take care before you click on
them because the originals are pretty large (up to 150kb)!!
|
|
