[simpits-tech] a simple seat design...
Gene Buckle
geneb at deltasoft.com
Mon Sep 14 06:37:41 PDT 2009
Here are the files for a simple seat I've been working on:

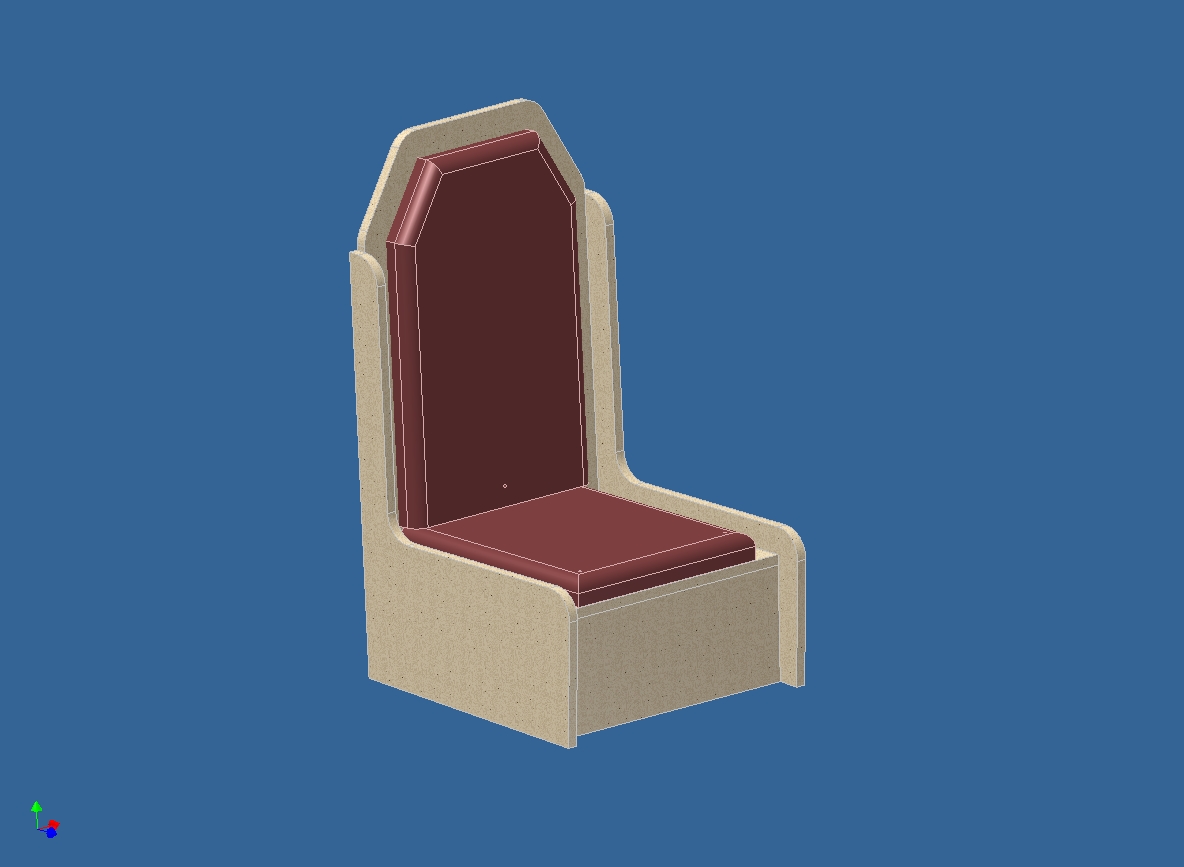

The "large" seat:
http://www.geneb.org/pitkit/seat/seat1.jpg

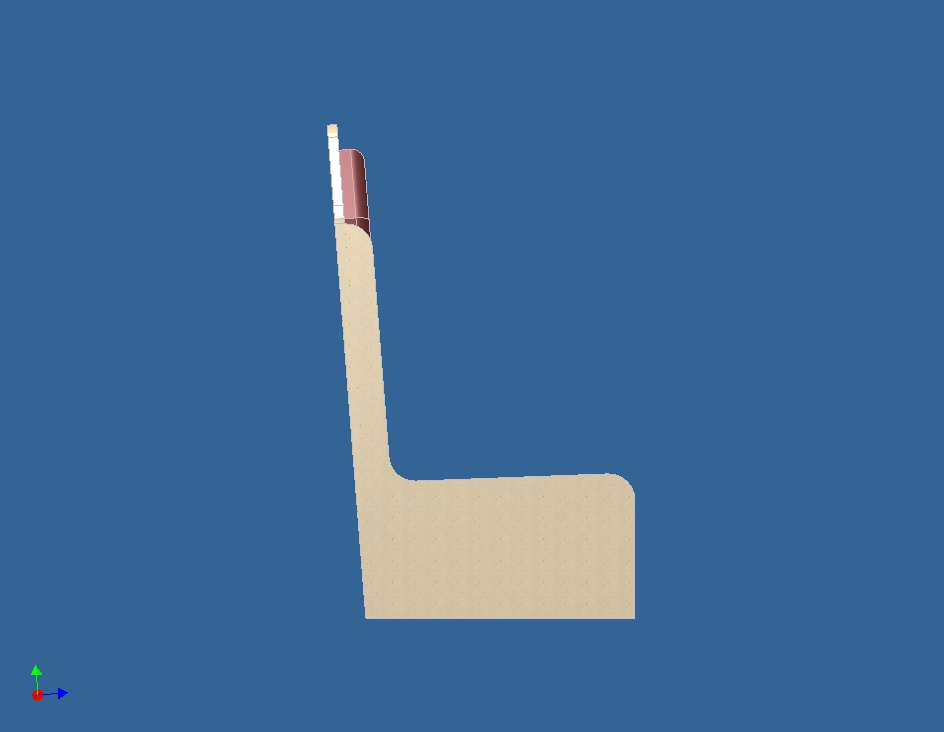

http://www.geneb.org/pitkit/seat/seat_side_view.jpg

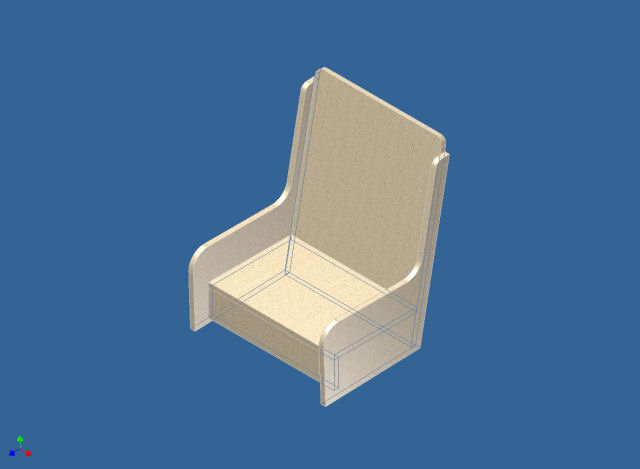

The "short" seat:
http://www.geneb.org/pitkit/seat/clipped_seat.jpg

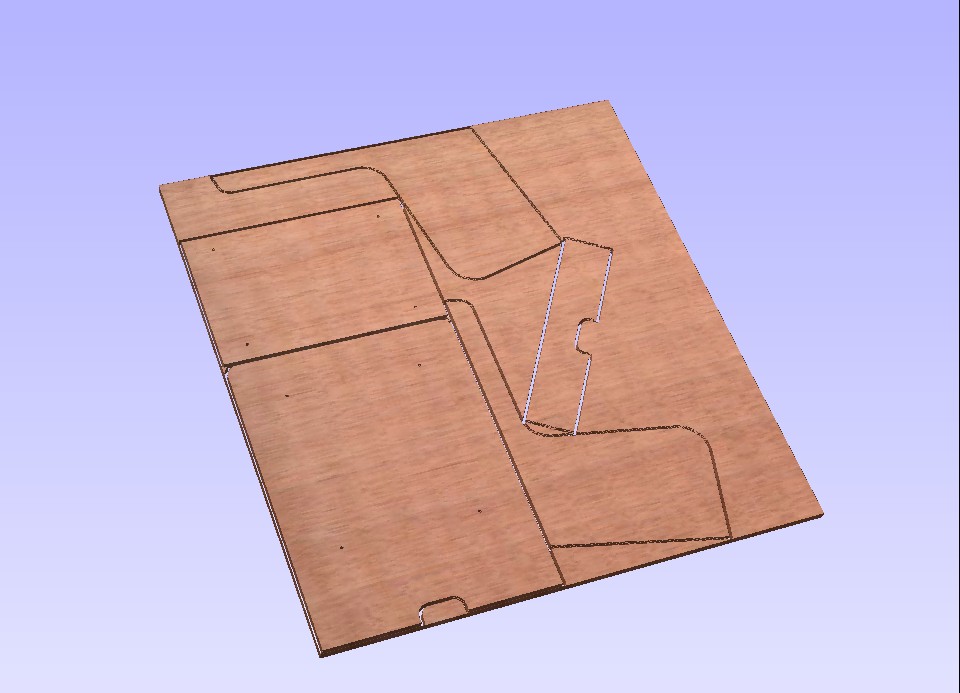

The short seat can be built from a half sheet of 3/4" plywood. This is
what the part layout looks like:
http://www.geneb.org/pitkit/seat/short_seat_layout.jpg
The plans are in DXF format and can be had here:
http://www.geneb.org/pitkit/simple_seats.dxf
The DXF file has the drawings for both seats as well as the cushion back
pattern.
