Due to a discussion ongoing at Frugal's, I dropped the HUD into the jet
and took a few pics.

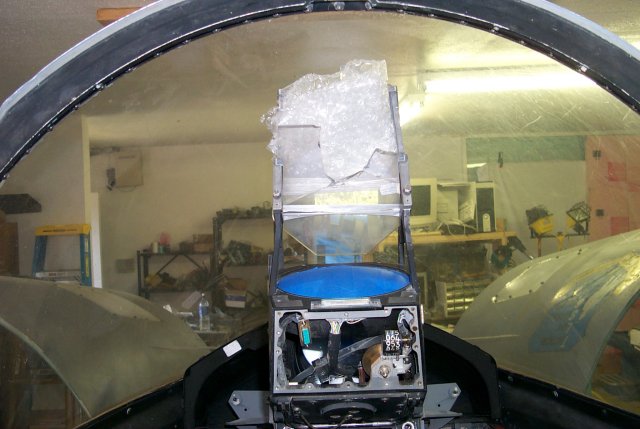

http://www.f15sim.com/images/hud_view3.jpg
http://www.f15sim.com/images/hud_left.jpg
I never realized how much volume this thing really ate up until I got it
installed. It's *huge*.
The blue area is tape that Rob placed there to protect the main lens.
That lens is 2" thick - I think it's the only reason it wasn't cracked.
The stuff on the combiner glasses is bubble wrap that i left in place to
keep the glass fragments from shifting.
Rob - I think we should pull the windscreen for a while. We're going to
need the access to properly route wire for the new components. There's
no reason to make you keep playing pretzel-boy. ;)
I was notified by one of my helpful crew-elves that a Boeing rep was going
to be on his base today. He's going to ask him for detail on how to
remove that retaining ring for the primary lens - barring that he'll find
out the best way to get access to that space. I also found the power
connectors for the HUD and VSD camera interface modules - they were in the
bag of parts that were attached to the HUD tray.
g.
