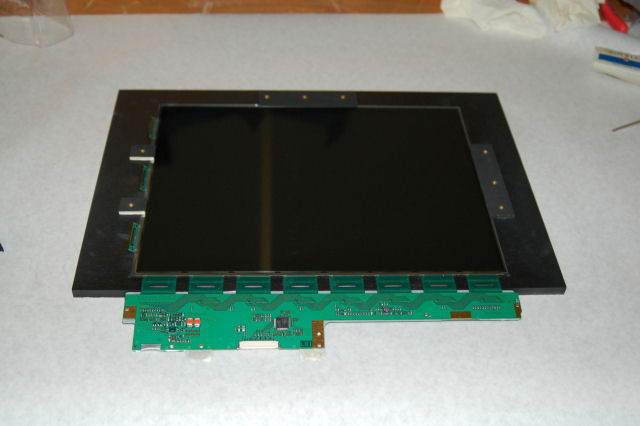

Here’s what the last panel for the projector looks like after being installed into the plywood frame.

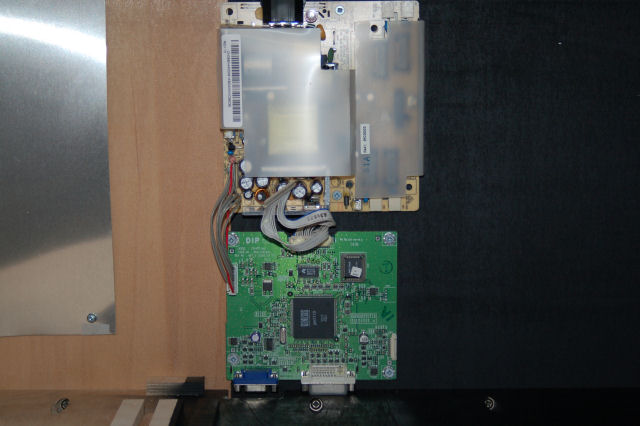

Here’s a pic of the LCD controller and the power supply:

Having all three projectors done is a great step to get completed.

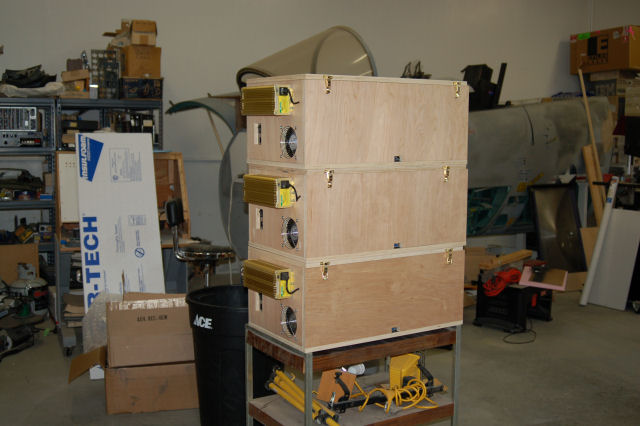

Here’s the “Stack”

I still need to get the supports for those built, but that will have to wait until this coming Saturday.

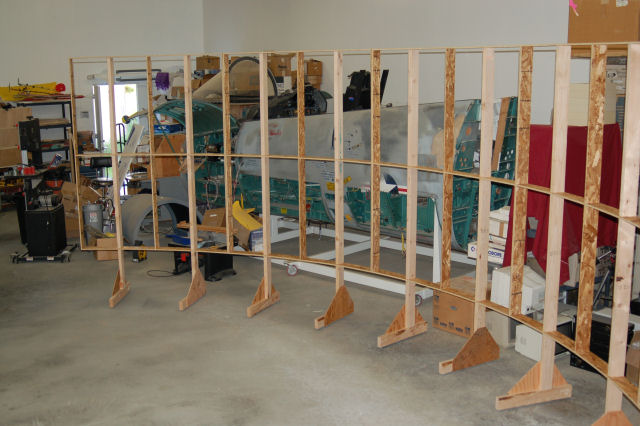

I got six of the screen segment frames assembled last weekend.  This sucker is a lot bigger in real life than it was in AutoCAD…

Each segment is about 63″ wide as measured straight across.  Each 2×4 leg is 95″ long.  It’s BIG.

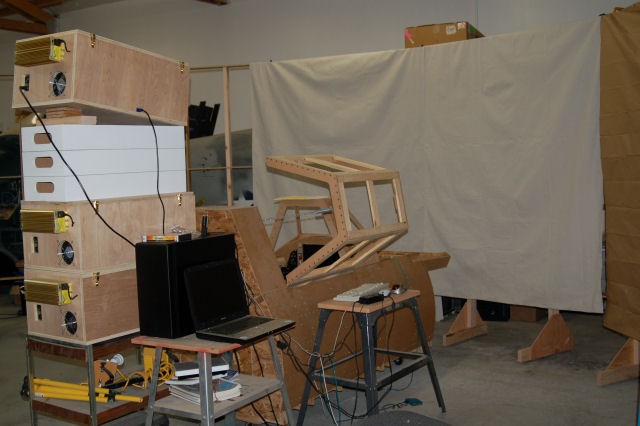

I used some canvas drop cloth as a screen so I could check out a few things.  Here’s what that looked like:

The stupid plasma MM2 is either acting up on me or the “deal” I got on the pots I used on the controls is coming home to bite me.  I’m not sure which…

Until next time!
