As many Quickshot MasterPilot users, I really didn't know where can I find
a blank cartridge for my MasterPilot.
Even I contacted to the company, they never answer my
mails.
So I asked my sound engineer friend "Peed"
to made this cartridge for me.
If you can make your own PCB at home it will cost about
4 $,
If you can't. Plus a few charge for PCB service, All
it will cost under 7$.
Here is a part list.
1. EPROM No. 28C64A
2. R1 = 1M Ohm
3. C1 = .01µF

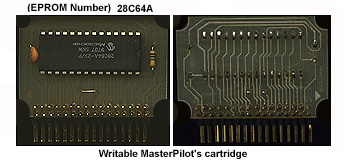

Sample of my cloned cartridge.
|

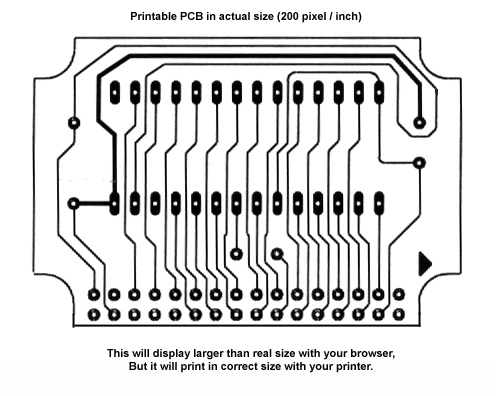

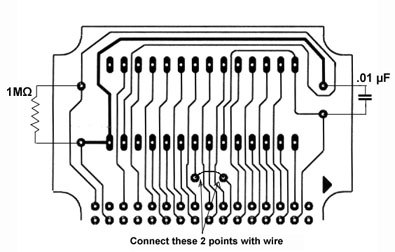

Here is a PCB diagram with R1 and C1 in location.
MP cartridge PCB in .jpeg format
MP cartridge PCB in .pcb format
|
